New Impact crusher FABO IMPACT CRUSHER

• All of our products are made with care and covered for 1 year warranty!
• Installation and Operator Training FREE

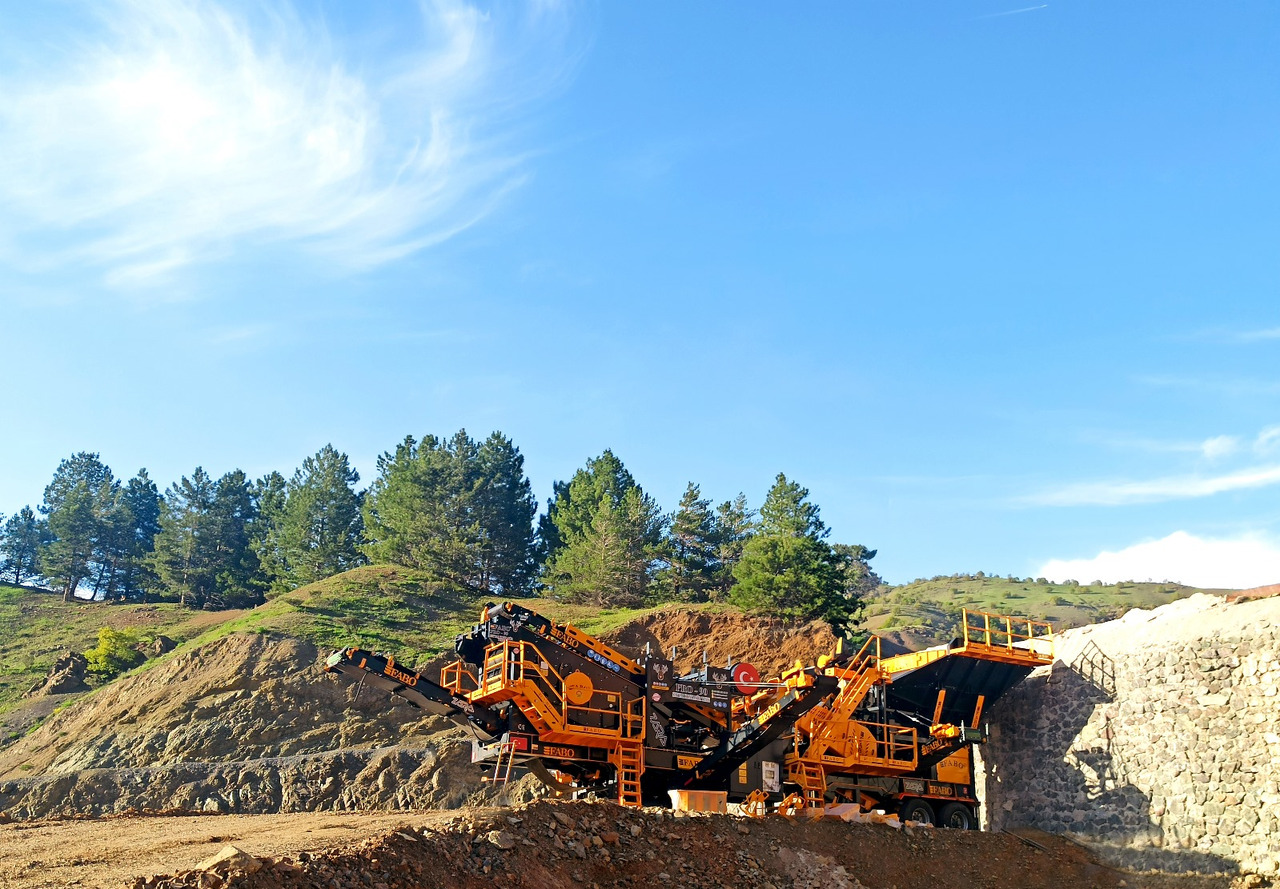

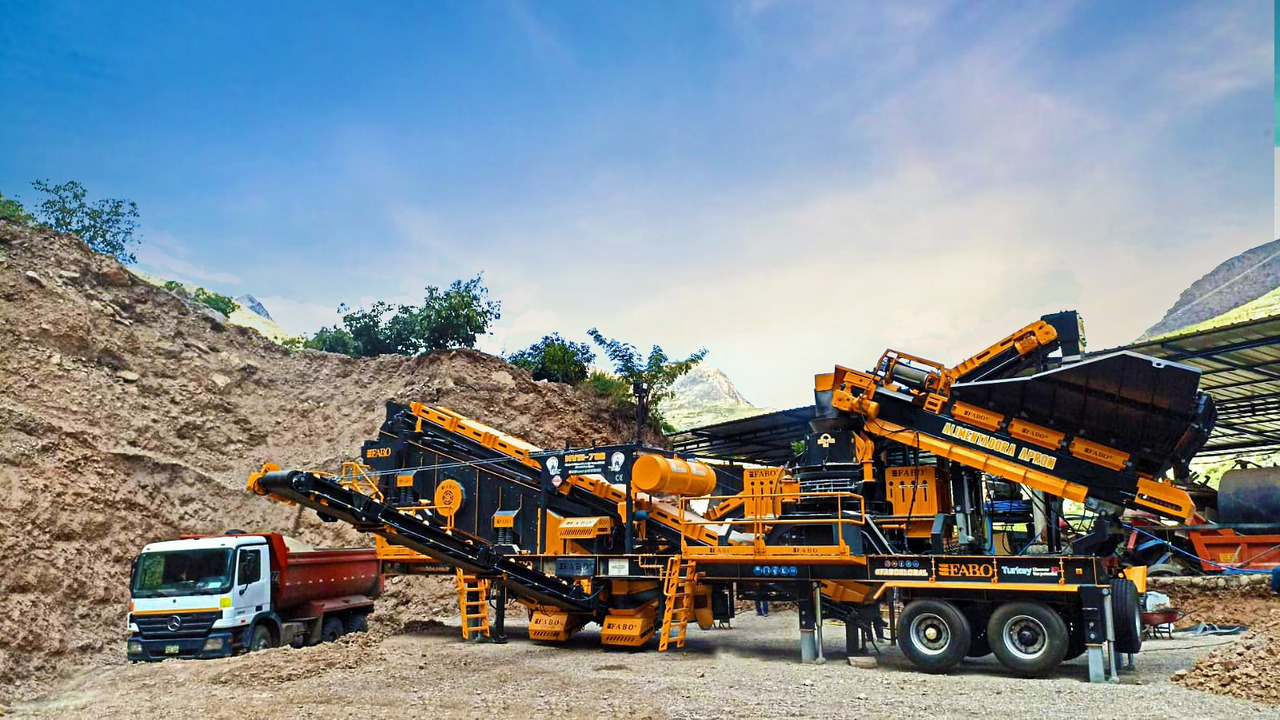

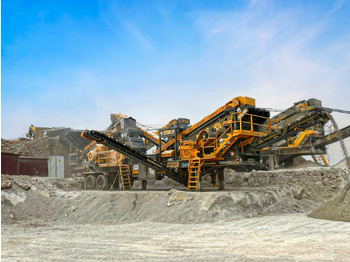

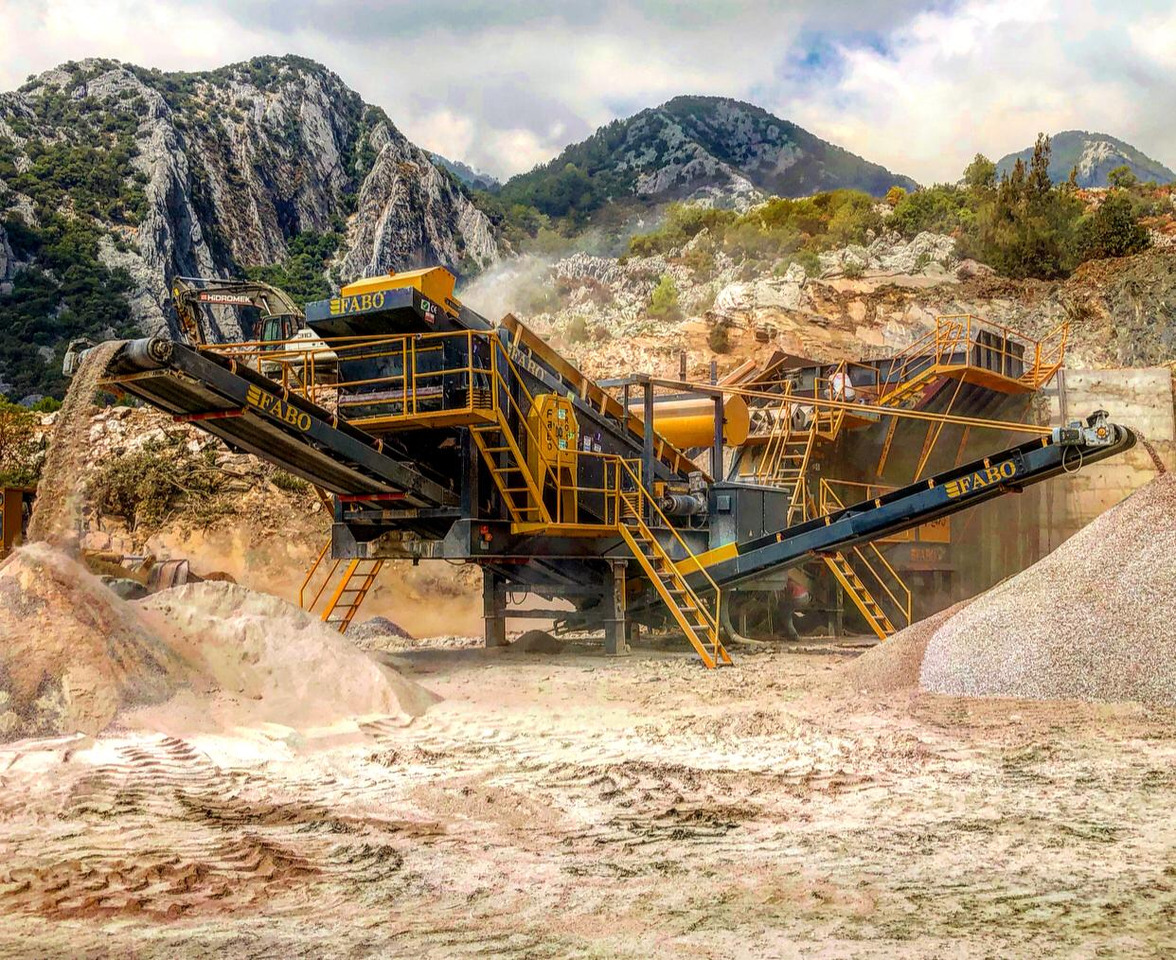

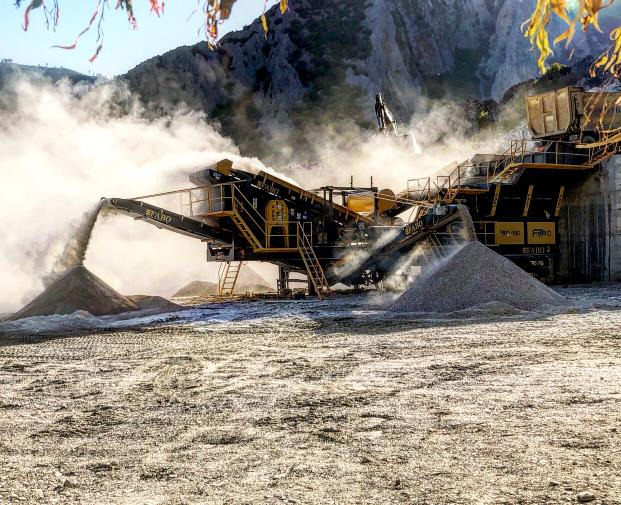

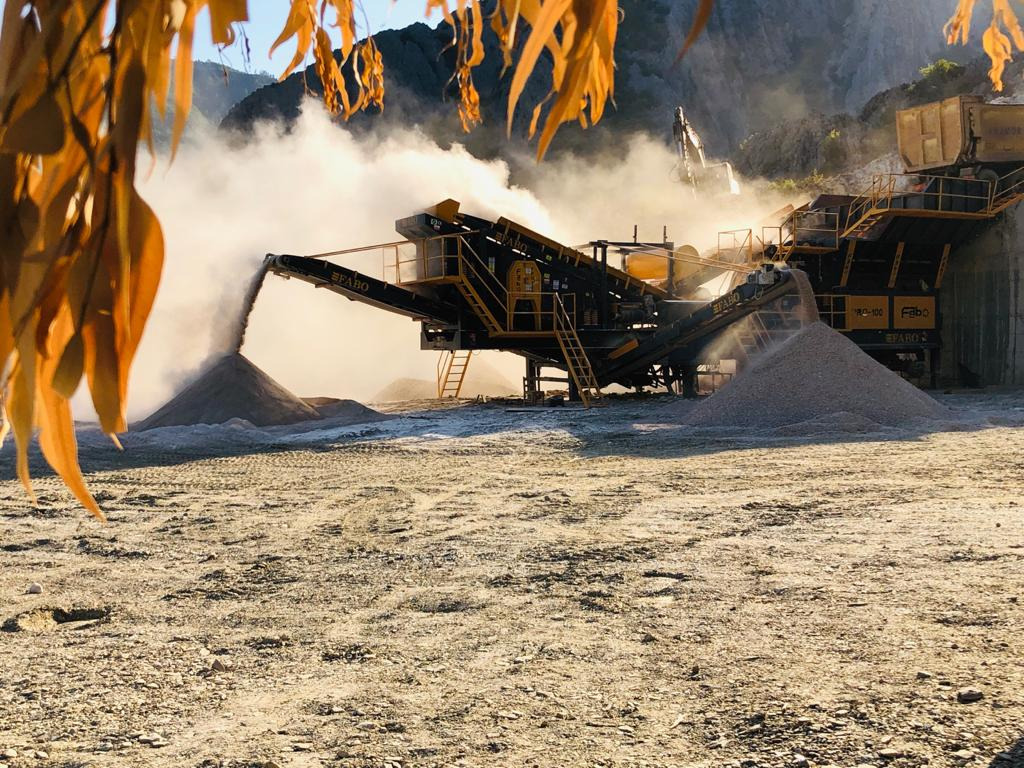

FABO PRO Serie is a mobile type closed circuit crushing plant that is suitable for especially limestone and other types of stones with hardness level as soft or medium.

MAIN FEATURES:

• Closed circuit crushing till to get desired size of product
• Capacity is variable according the material feed and final product dimensions to be crushed
• All equipments are assembled on single special heavy duty construction chassis, transportable by 1 truck
• Conveyors are foldable
• Up to 3 different sizes of aggregates
• Since the whole plant is built in one chassis, it has the advantage of the fastest production line
• PRO Serie mobile crusher plant can be used by single operator, feed can be done by truck, loader or excavator
• Plant can be installed in 2 days with its special heavy duty construction chassis
• With its multifunctional primary impact crusher, you can crush different product sizes with high capacity
• It is equipped with 3 axle, air-controlled brake system and signaling system.
• Hydraulic system is controlled by remote system
• All motors are under protection with metal sheet covers
• The dust suppression control system prevents dusting by conveying high pressure water.
• Mobile system has complete fully automation system. Also the plant can be controlled by using tablet with single staff.

TECHNICAL SPECIFICATIONS:

-Bunker: 40m3

-Plant Dimensions: 20000x4700x4700 mm

-Production Capacity: 250-350 Tons Per Hour

-Crusher Type & Rotor Size: Turbo Impact – 1200x1500mm

-Maximum Feeding Size: 800 mm

-Vibrating Screen Size and Deck: 2300x5500mm 3 decks

-Total Motor Power: 425 kW

-Generator (Optional): 900 kvA

PRO-150 is a combination of:

• Bunker(Hopper)

• Vibrating Grizzly Feeder (bypass)

• Turbo Impact Crusher

• High Stroke Type Vibrating Screen

• Folding type feeding, feedback, bypass and stock conveyor belts

• Hydraulic feet

• Mobile Chassis with axles and tires

• Fully Automation System

• Dust Suppression System

• Easy walking platforms for maintanance

• Diesel Generator (Optional)
