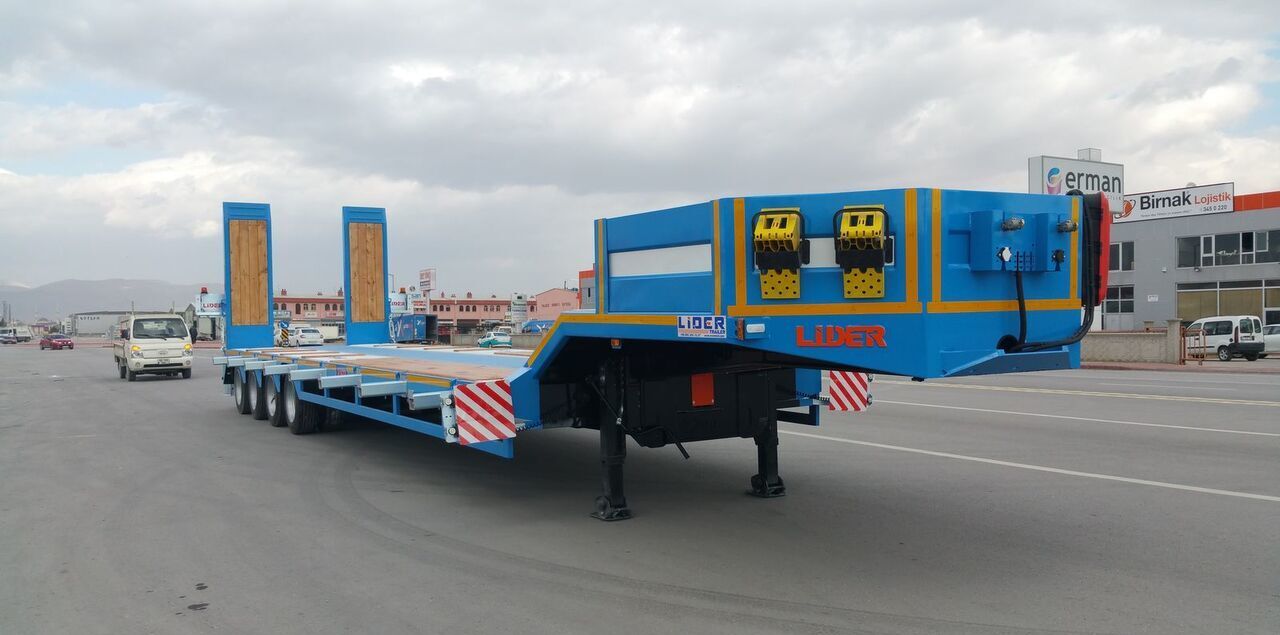

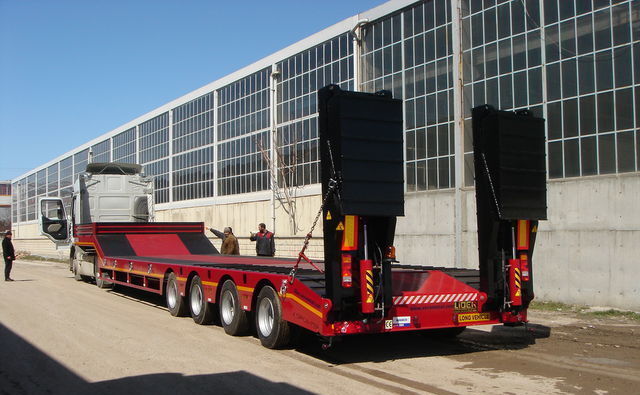

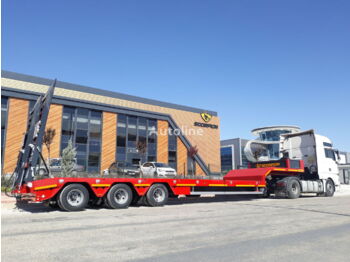

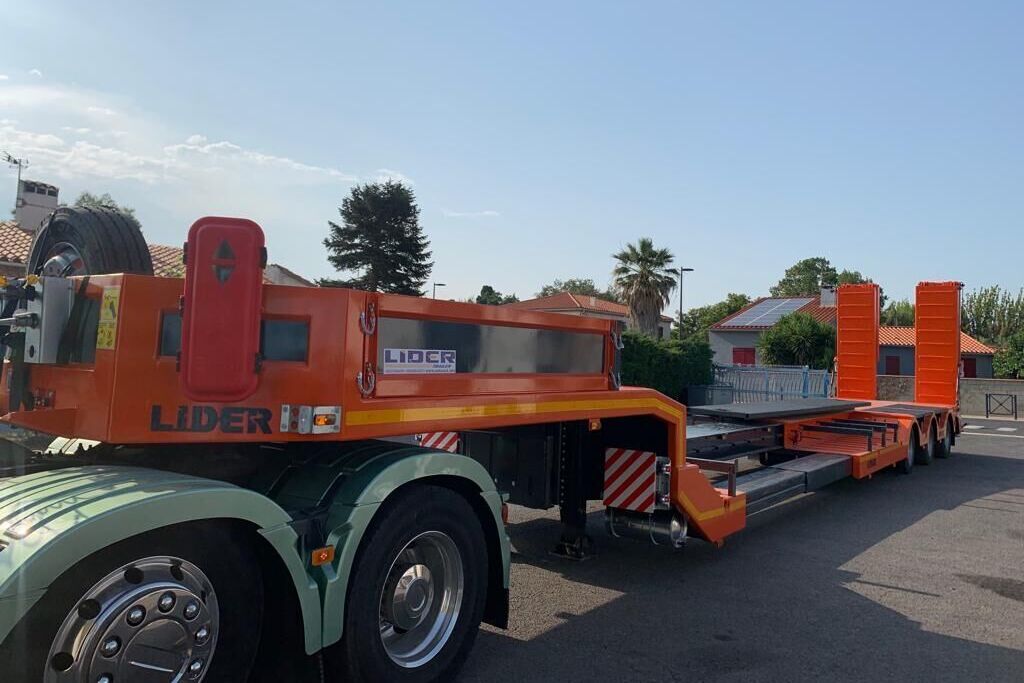

New Low loader semi-trailer SCORPION TRAILER 2023 NEW 3 AXLE (MANUFACTURER COMPANY)

TECHNICAL FEATURES

Chasis : High Resistance Steel

Brake System : 71/320/ECC Suitable to KNORR-Bremse 4S/2M, double electro pneumatic brake system

Electrical System : 76/756/ECC Suitable to 24 volt lightning system

Front Legs 24 ton capacity mechanical legs,50ton static capacity

Rear Legs : Manual foldable legs, 45 ton static capacity

Tyre Dimensions : 295/60/22,5 tyres & steel discs

Axle and Suspension : 2 Stable1 axle lifting up (manual controlled) brake drum with air Suspension 14 ton capacity

Floor : 50 mm thickness hard wooden floor and steel covered over of tyres

Side Extension : 300 mm galvanised coated steel brackets (with 100 mm parts)

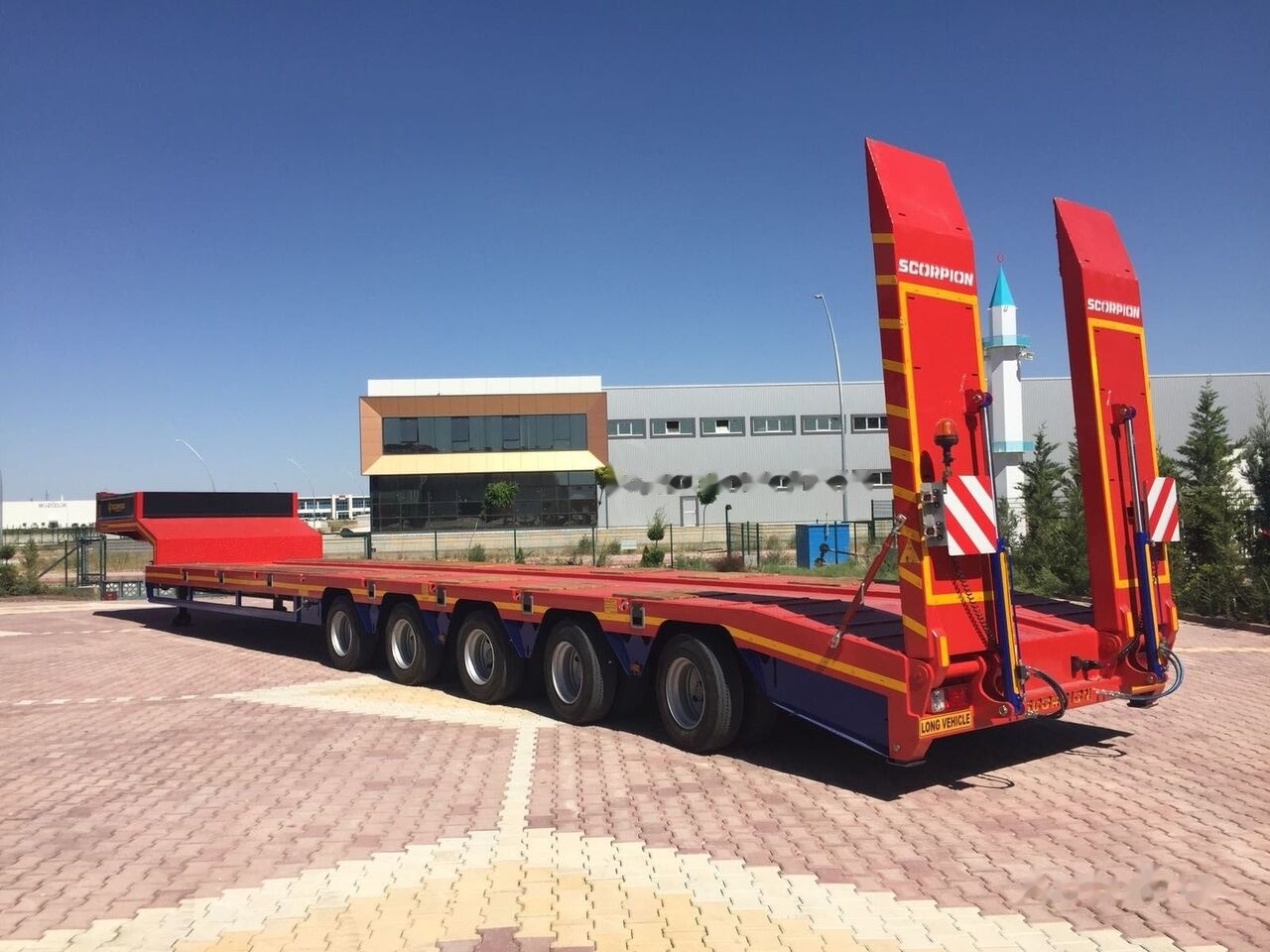

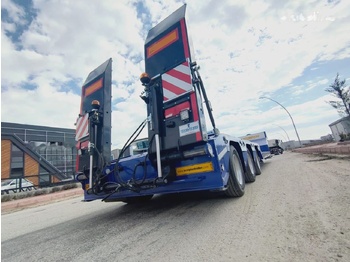

Rear Ramp : 2 pcs square figured hydraulic ramps moving to sides is mechanicalRamp Bevel : 12°

ADVANCED FEATURE

DExtensive Ramp Options

Below features are optioned ;

4260 mm lenght ramps

Side Sliding hydraulic ramps

Galvanise steel grille type floor ramps

Portable aluminium ramps

Technical Features

5th Tyre Height : 1.300 mm

Axle Distance : 7.300 mm

Total Vehicle Lenght : 13.040 mm

Steering Drag Link Lenght : 3.200 mm

Platform Lenght : Mn: 11870 mm

Mx: 18.000 mm

Platform Height (Loaded) : 1000 mm

Total Width : 2550 mm – 3600 mm

LoadSade

Lowbed has below load safe tools

3x2 load fasten rings 6 ton capacity at steering drag link

4x2 load fasten rings 6 ton capacity at platfrom area

8x2 load fasten rings 6 ton capacity at side chasis
