Marco-Polo Gülletankwagen / Slurry tanker / Tonne à lisier / Cisterna per liquami / Сisterna de estiércol líquido / Цистерна для жидкого органического удобрения / Wóz asenizacyjny 12 000 leasing

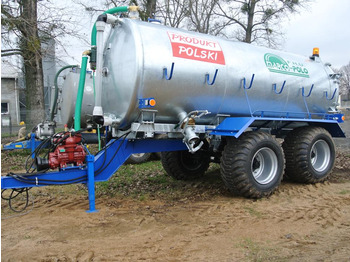

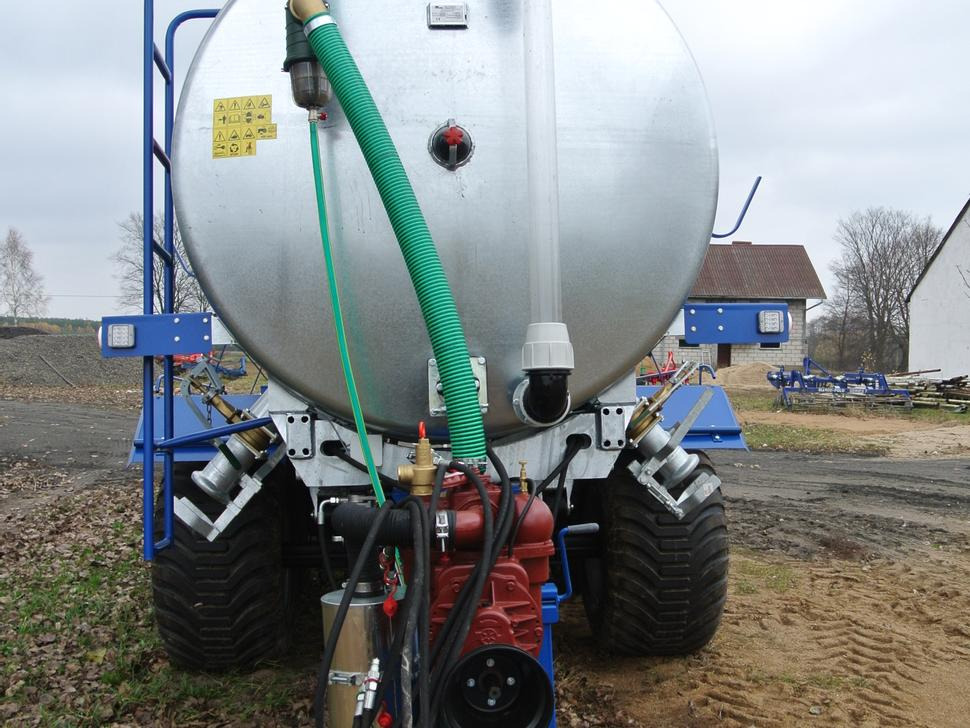

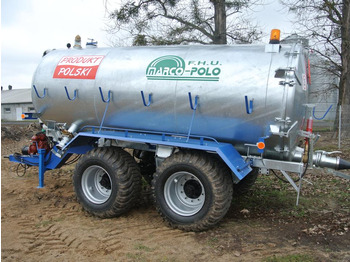

Marco-Polo MPR-2S/12000 Slurry Tanker

Chassis Construction:

Self-supporting structure

Removable D-50 drawbar eye

Rigid metal drawbar, powder-coated

Coupling to tractor via lower transport hitch

Mechanically adjustable support leg

Running Gear:

Two-axle wheel set, rear steering axle

Tyres 550/60-22.5

Pneumatic brakes, dual-circuit / single-circuit

Tank:

Pressure tank with 12,000 L capacity

Two internal reinforcing rings made of T-section steel

Hot-dip galvanized inside and outside with additional passivation

Rear end plate with Ø 600 mm manhole

Two 4" sight glasses on the front end plate

Upper overflow stub pipe at the highest point for overflow valve

Upper filling hatch Ø 210 mm

Anti-overflow baffle

Compressor

Vacuum pump type 9000 MEC/M

Overfill protection:

Maximum vacuum – 0.94 bar

Dual-ball overflow valve

Shut-off siphon valve with sight glass and drain valve

Safety Valves:

Safety valve (on compressor) 1 1/2″

Vacuum relief valve 1 1/2″

Pressure gauge D100, range –1 / +1.5 bar

Muffler–oil recovery system

Tank Filling and mptying System

Stubs and Valves

Rear suction stub 6", capped

Rear disc arge stub with 6″ double-flange gate valve and hydraulic cylinder; foldable discharge chute + suction hose connection

Left side stub 6", capped

Right side stub 6", capped

Connection Accessories:

Galvanized quick coupling with flange for hose connection

Suction hose Ø 126 mm (internal), 6 m long, with suction strainer

Wide-angle slurry spreader; working width up to 14 m, outlet version B

Electrical Installation

Road-legal electrical and lighting system, LED 12 V + 1 beacon

Front white position lights

Rear road lights with indicators

Side reflectors – orange

7-pin connector cable

Triangular slow-moving vehicle sign on rear end plate

Additional Equipment Included

Nameplate, user manual, EU declaration of conformity / CE marking

Optional Equipment (extra cost)

Trailing hose applicators 3–18 m

Two-row tine applicators 4–6 m

Two-row disc applicators 3–4 m

Skid/shoe applicators 6–18 m

Three-point hitch for applicator mounting

Hydraulic mixer

Hydraulically adjustable drawbar

Hydraulic-pneumatic brake system – one axle

Hydraulic-pneumatic brake system – two axles

Turbo-filler

Suction arm + turbo-filler 8"

Submersible suction arm + turbo-filler 8"

Solenoid valves + control panel

Hydraulic compressor control

Frame galvanization

Drawbar galvanization

Mudguard galvanization

K80 ball hitch

Rotating D-50 towing eye

Hydraulic support leg

Upper filling hatch with hydraulic opening 6–8"

Side ladder with platform

Rear end plate opening on hinge

Vertical fill-level indicator with 2" valve

Painting of galvanized tank in one colour

Suction hose 6" (Ø 150 mm)

Quick couplings 6"–8"

Tow eye D-60

Tow eye K-80

Tow eye D-50 rotating

Manual support leg

Hydraulic support leg

Hand brake

Vacupress hoses 60–100 m

Flex hoses Ø 110–200 m

Manual lever for 8" gate valve

Vacuum pumps 3000–14800 L/min

Custom configuration available.
