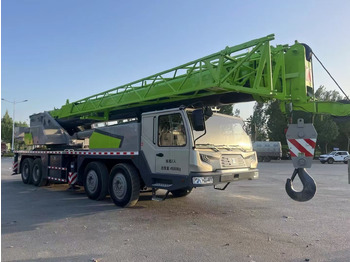

ZOOMLION ZTC700V 70 ton 80 ton ztc800v ztc1000v truck crane leasing

Published: 3d

ZOOMLION ZTC700V 70 ton 80 ton ztc800v ztc1000v truck crane leasing ZOOMLION ZTC700V 70 ton 80 ton ztc800v ztc1000v truck crane: picture 2

ZOOMLION ZTC700V 70 ton 80 ton ztc800v ztc1000v truck crane leasing ZOOMLION ZTC700V 70 ton 80 ton ztc800v ztc1000v truck crane: picture 3

ZOOMLION ZTC700V 70 ton 80 ton ztc800v ztc1000v truck crane leasing ZOOMLION ZTC700V 70 ton 80 ton ztc800v ztc1000v truck crane: picture 4

Published: 3d

Brand

ZOOMLION

Model

ZTC700V 70 ton 80 ton ztc800v ztc1000v truck crane

Year of manufacture

2023

Mileage

500 km

Condition

excellent

Lifting capacity

70000 kg

Lift height

70000 mm

Arm length

43000 mm

Color

green

Location

China, No. 3755 Jinshan Avenue, Jinshan District, Shanghai, China

Engine/driveline

emission class

Euro 5

Additional

warranty

More information

Contact Person:Jenny

Whats App / We chat: +86 15202117835

Mobile: +86 15202117835

Email: abc@kyused.com

Details

Place of Origin:China

Operating Weight:70ton

Core Components:Pump, Gearbox, Engine

Packing & Delivery

Container,bulk,and roro are all available ! which ever is convient for you!

Technical parameters of Zoomlion ZTC700V552 truck crane

Large fixed total lifting capacity (kg) 70000

Basic arm * * Large lifting torque (kN. m) 2646

Long main arm * * large lifting torque (kN. m) 1288

Basic arm * * Large lifting height (m) 13.4

Main arm * * Large lifting height (m) 47.7

Auxiliary arm * * Large lifting height (m) 63.8

Single rope * * high speed (main winch) (m/min) 125

Single rope * * high speed (secondary winch) (m/min) 110

Crane arm lifting time (s) 55

Crane arm extension time (s) 120

Rotation speed (r/min) 0~1.7

High driving speed (km/h) 85

Large climbing slope (%) 46

Small turning diameter (m) ≤ 24

**Small ground clearance (mm) 305

Fuel consumption per 100 kilometers (L) 45

Driving state self weight (total mass) (kg) 46000

Vehicle curb weight (kg) 45805

Front axle load (kg) 20000

Rear axle load (kg) 26000

Dimensions (length x width x height) (mm) 14500 x 2800 x 3850

Longitudinal distance of legs (m) 6.05

Lateral distance of legs (m) Full extension 7.8

Tail turning radius (mm) 4200

Main arm length (m) 12.1-47.0

Main arm elevation angle (°) -2 to 80

Vice arm length (m) 9.5, 16.0

Installation angle of auxiliary arm (°) 0, 15, 30

Contact Person:Jenny

Whats App / We chat: +86 15202117835

Mobile: +86 15202117835

Email: abc@kyused.com

Details

Place of Origin:China

Operating Weight:70ton

Core Components:Pump, Gearbox, Engine

Packing & Delivery

Container,bulk,and roro are all available ! which ever is convient for you!
